BSA r10 huma regulator Belleville stack

humblemanor said:
Seen that but he has different thickness washers, I could try double stacking a couple of washers and try but diagram shows a 3rd thicker washer.
Click to expand...
Mine has six Belleville washers in total, three at 0.83mm thick and three at 0.73mm thick. I arranged them as the drawing and pressure adjustment seems quite precise. I set the regulator to 1100 psi which I have been informed is the factory setting for the BSA regulator. I don’t intend to try and fine tune it as it is going to be replaced. I just want to confirm it is working correctly with no creep

Last edited:
nevadacowboy said:
I have an e mail from Huma stating the reg pressure on a sub 12 .177 R10 should be set to 100bar.
Click to expand...
they told me that they set all of the R10 sub twelves to 80BAR, but the last one they sent me was set at 130BAR ! and the last R10 I purchased had a Huma set at 50BAR.. so best check them all...
At the end of the day all of this becomes irrelevant if a non standard Hammer Spring is fitted... but that's another story ! lol

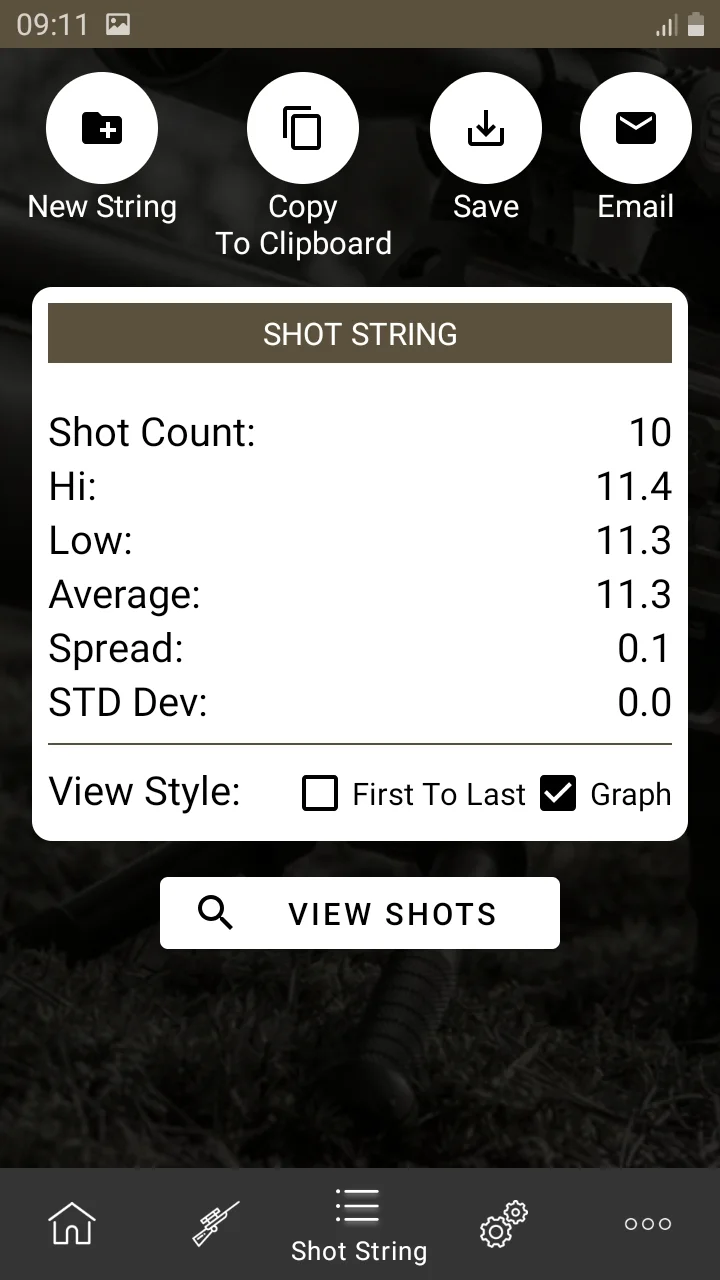

My R10se, Huma regged (was set at 95bar by Huma) bought direct from Huma with no adjustment made when fitted. I suppose I just got lucky. Shot string using AADF 8.4 grain.

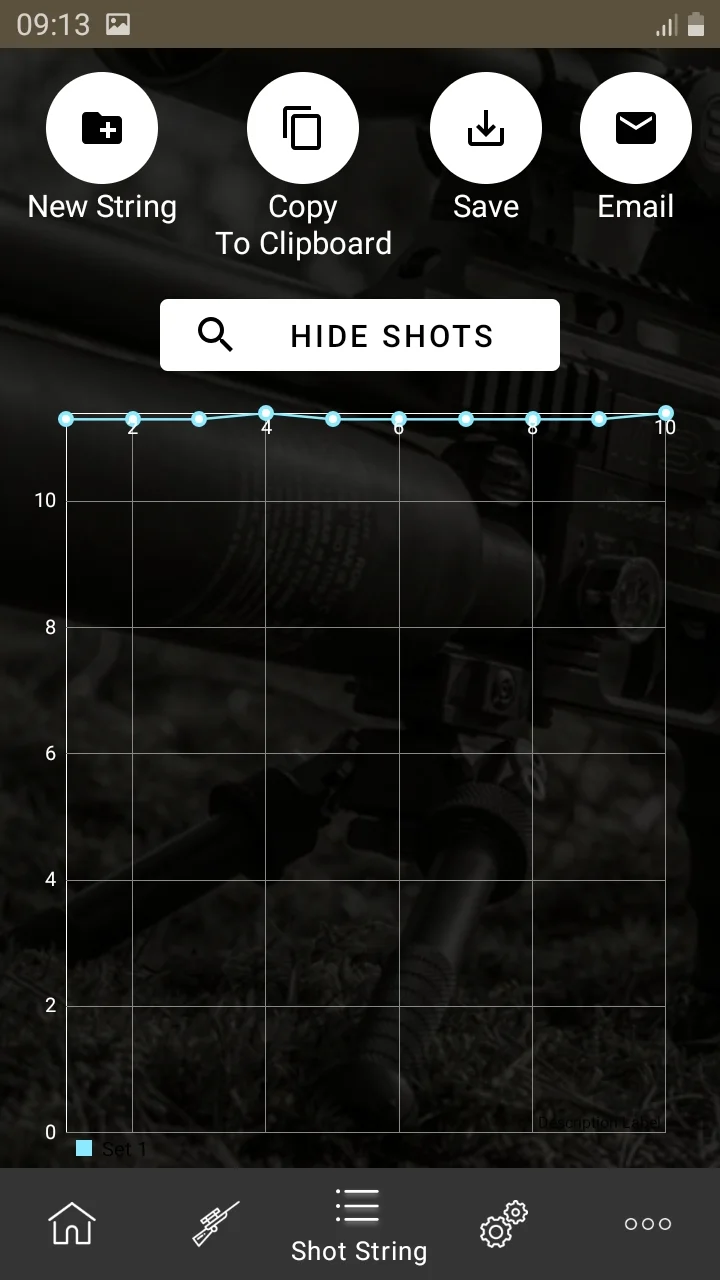

Screenshot_20221208-091304_FX Radar.jpg

Last edited:
