Re assembly of rekord trigger help.

[Barn Owl]

I need a bit of guidance! Been following shooting at dawn's video for reassemble but struggling get the the first sears in's spring in the correct place.

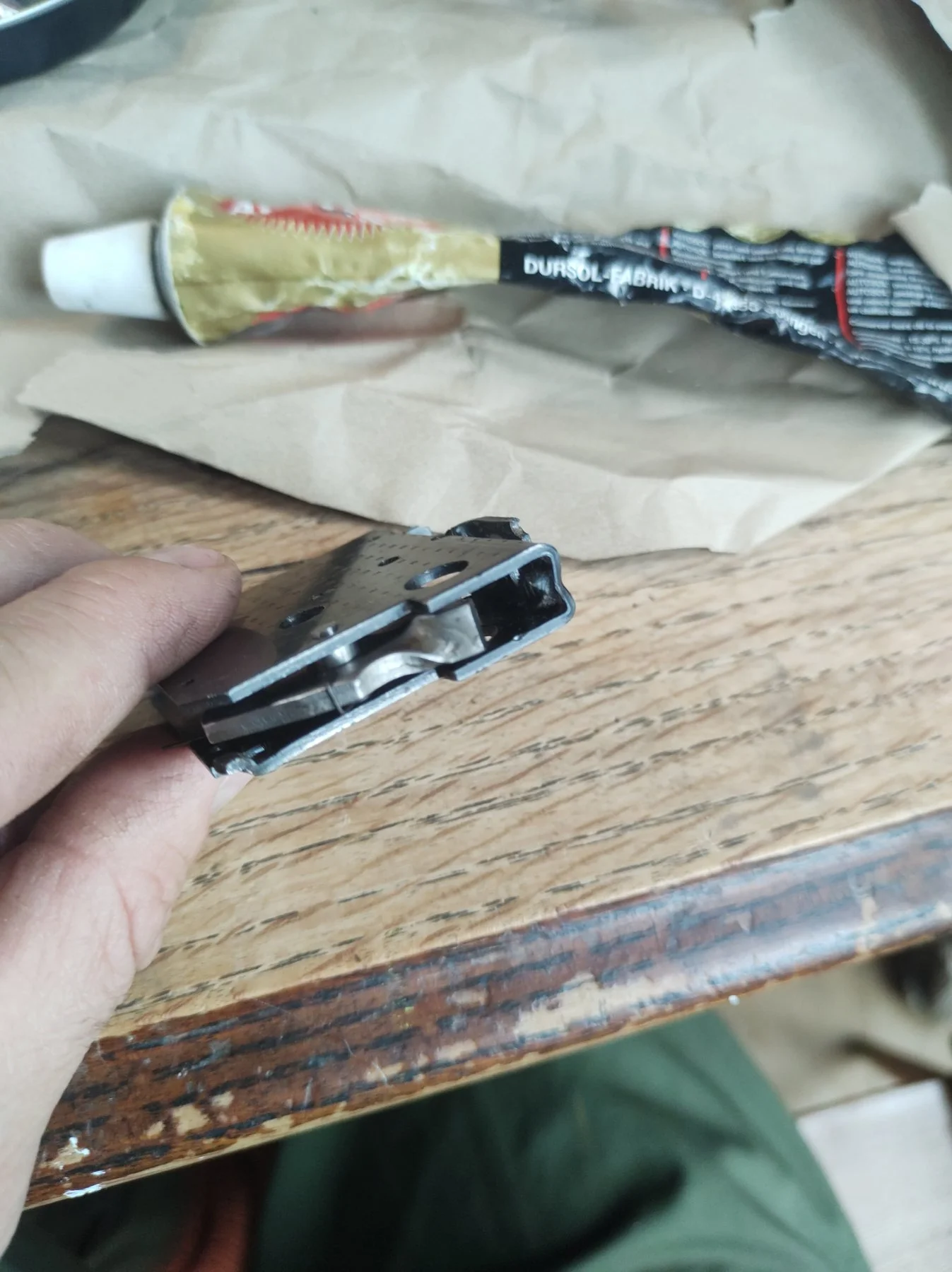

Please see pic. Where do I go from here? Is the a better guide video where his hands don't disappear out of shot at crucial moments?

Any wise words gratefully received.



[Barn Owl]

The spring seems to be pulling the sear in rather than pushing it out. So that implies itss the wrong way round... But I can't see how it can go the other way round ..



[Cinimod]

@Blackmax



[Barn Owl]

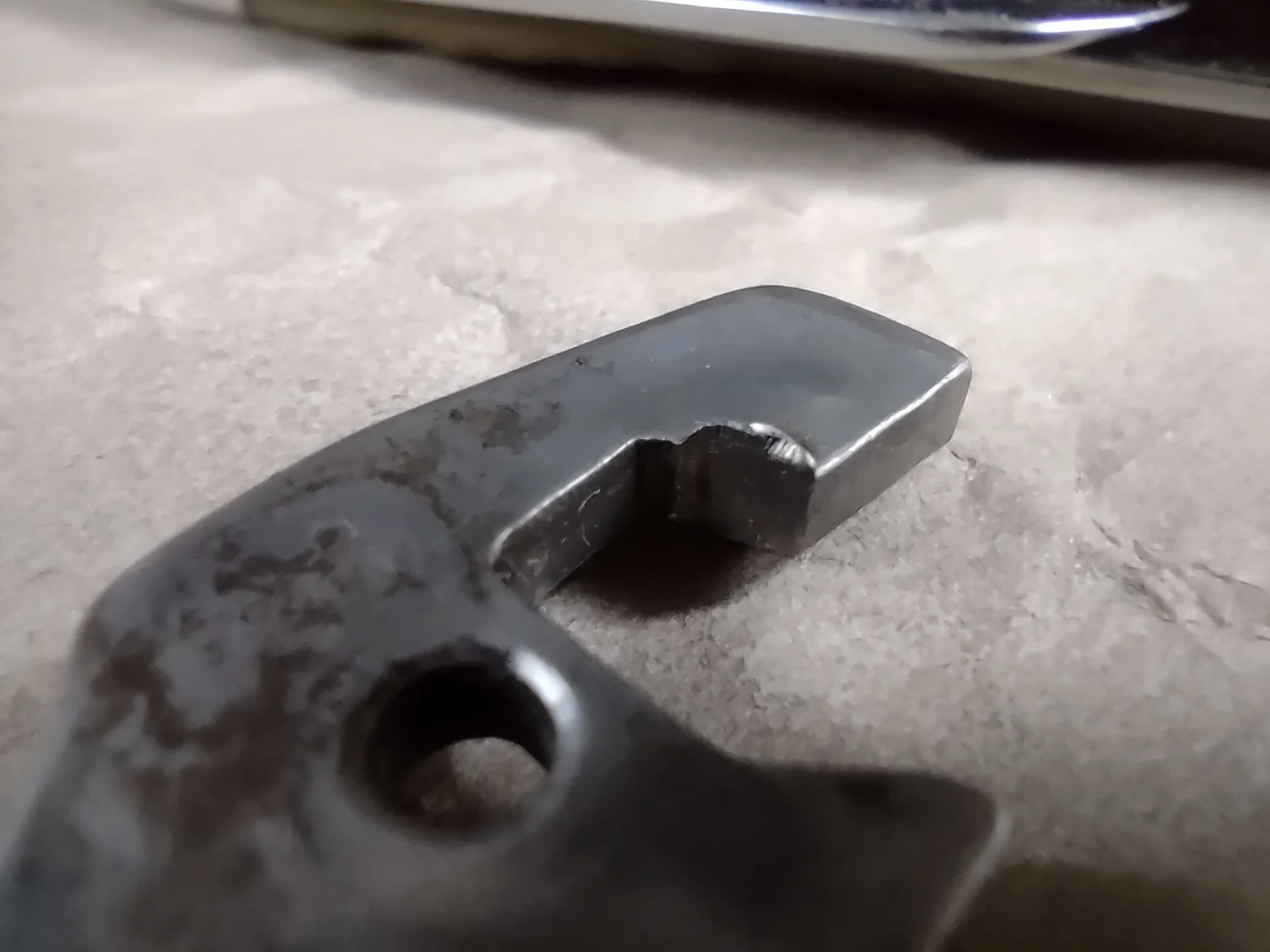

It was pretty mucky but I got it cleaned up ok. Just didn't see how this spring was sitting though I took a pic on dissembling.



[Lightning22]

Is this any use to you? You look to have the middle sear spring upside down.



[BallisticBill]

This might help



[Barn Owl]

This might help

View attachment 70392

Ah that helps. Thank you.



[Barn Owl]

All back together now. Just needs adjusting. That diagram was all I needed.



[Barn Owl]

middle sear spring upside down.

You were right!



[Deerstalker]

This site may help.

http://www.airguns.net/general_reko... adjustments are possible: First stage travel



[junglie2022]

This site may help.

http://www.airguns.net/general_rekord_trigger.php#:~:text=The Rekord trigger is a two-stage trigger and,The following adjustments are possible: First stage travel

Thanks for that I'd lost that link, one of the best guides to the rekord adjustments.



[Barn Owl]

Thanks for that I'd lost that link, one of the best guides to the rekord adjustments.

I couldn't get the link to work.



[plinks]

I was in the same boat watched the same video, thanks for the help



[Barn Owl]

I was in the same boat watched the same video, thanks for the help

Did you get it back together ok in the end? There's a bit on the shooting at dawn vid that you can't see what's happening isn't there...



[plinks]

Did you get it back together ok in the end? There's a bit on the shooting at dawn vid that you can't see what's happening isn't there...

No that bits catch me out iv assembled it a few times now and its jut not right. Ya i don't see that one section but at least i can do the other stuff now.



[Barn Owl]

No that bits catch me out iv assembled it a few times now and its jut not right. Ya i don't see that one section but at least i can do the other stuff now.

I feel your pain my friend. Hope you figure it out soon. Have a good study of the diagram in the thread. I found that most useful.



[plinks]

I feel your pain my friend. Hope you figure it out soon. Have a good study of the diagram in the thread. I found that most useful.

Cheers owl ill get it



[steelyglint]

I've recently done mine, and when I asked how to do it I was provided a wealth of info in a reply to my post. Which bit is going wrong. If I can help let me know. I had the rear sear going backwards at one stage.



[compo82]

bloody video caught me out as well his hands dissapear then he does a blue peter moment with one prepared earlier



[steelyglint]

The best advice I found was to use the Sears to tension the springs, rather using special tools etc. to push the springs past things.
