Custom breech block .

[1260engineer]

More 7075 T651

After cutting it to ruff size it went in the mill for a quick square up .then a block cut out of one end . then another block bolted into place ready for

A spin in the lathe for a rather long hole

tiz rarther long .

If you look on the furthest/back edge you will see where ive added the block .
Then the block is back to the mill for some shape and raised doves

The bore is then reamed to size .

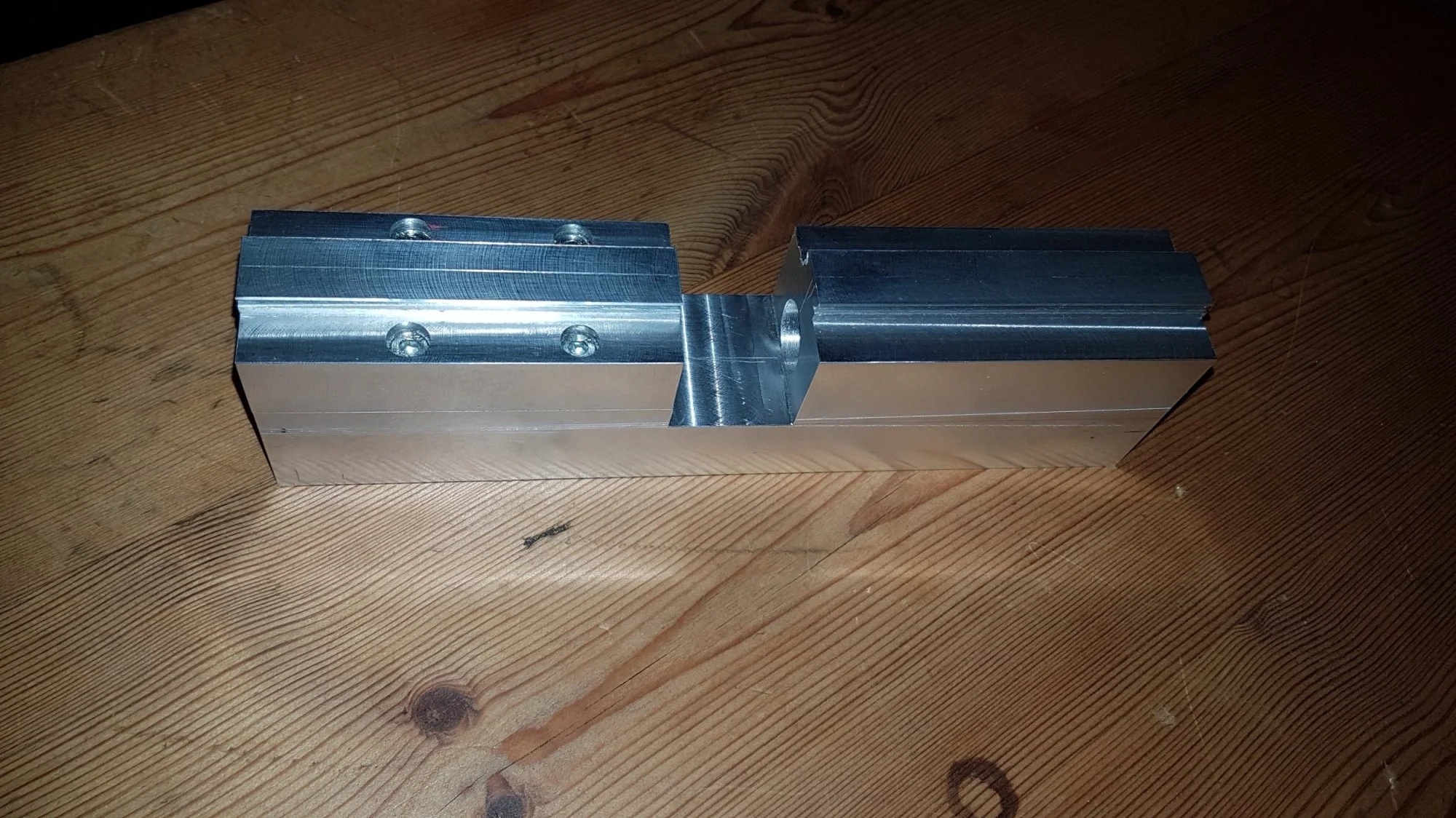

Then you end up with this .

The idea with the bolt on section is so you can remove the cap and just lift out the bolt .
that then gives you access to the cocking slot.
There you go.



[Mark Palmer]

More "jewellery" from the house of 1260!



[1260engineer]

More "jewellery" from the house of 1260!

Morning Mark that we be Shed then



[Mark Palmer]

Morning J, sorry the "shed of 1260" , the home of exquisite airgun jewellery



[bill57]

Lovely work that.



[Rapid7Nick]

Lovely work. Reminds me of when a machined an alloy block up for a sharp innova I did a few years back.



[Mike Woody Watkins]

Morning J. Very impressive! How long would that have taken to do?



[1260engineer]

Lovely work that.

Thank you Bill



[1260engineer]

Lovely work. Reminds me of when a machined an alloy block up for a sharp innova I did a few years back.

Cool do you have any pictures. i would love to see that . i have a Innova and Ace very nice to have self contained rifles .



[Rapid7Nick]

Cool do you have any pictures. i would love to see that . i have a Innova and Ace very nice to have self contained rifles .

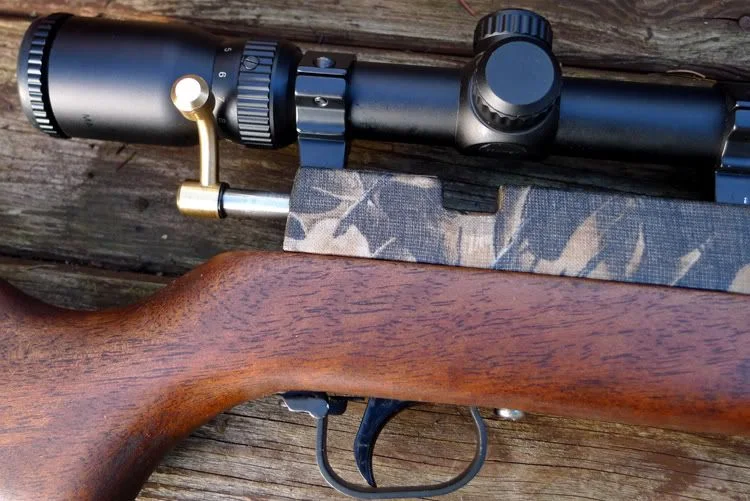

Innova alloy block here.
For a temporary job I covered this in camo tape to see how this shot first. Several years later and it’s still the same.



[junglie2022]

Proper good machining that, wish you were my neighbour.



[1260engineer]

Morning J. Very impressive! How long would that have taken to do?

Morning Mike
probably a coulpe of days . it takes longer to set up than actually machine it . the longest bit is setting up for the dove tails .
sounds a bit strange but i fit a barrel and the line up off the muzzel end . (nuts how did that happen )
Then i wind the bed full back so the dove tails are perfectly in line with the barrel .

Innova alloy block here.
For a temporary job I covered this in camo tape to see how this shot first. Several years later and it’s still the same.

Blummin ek Nick thats some nice work . i do hope your proud of that . i would be . Superb mate superb .
Ah Nick im pondering doing a metric Rapid block . please dont tell me you’ve done one



[rabbitwrecker]

Lovely work as ever, J - now make a titanium springer/rammer...



[Mark Palmer]

Lovely work as ever, J - now make a titanium springer/rammer...

With a clever recoilless action!!



[Deleted Member 170325]

Very nice as always



[critter]

A masterclasses



[rabbitwrecker]

With a clever recoilless action!!

You could get away with a Giss or sledge action, weight wise it should be fine in titanium. However, I'd be happy with a simple sub-12 titanium sporter...



[Spyderdryver]

I admire the cut of your jib 1260. I'm about to embark on a similar project although I'm still at the CAD stage. ( Cardboard cut outs ) I've got an Anschutz stock, a Walther cylinder, a CZ barrel and a spare Reximex regulator. My breech blocks normally start off as round stock to enable drilling/boring from both ends. Squaring off comes later. It's a bit wasteful of material but it works for me.
The problem I've got is lack of space in which to finagle a trigger mech. I'm working on it. Can't wait to actually start machining.



[1260engineer]

Lovely work as ever, J - now make a titanium springer/rammer...

Thanks mate
Errr might be making something



[1260engineer]

Very nice as always

Thank you Mr Mice
