AP900/1000 Cheek riser block

GaryM

Super member
Joined
Jul 8, 2022
Messages
919
Reaction score
1,485
Location
Burton Latimer Kettering

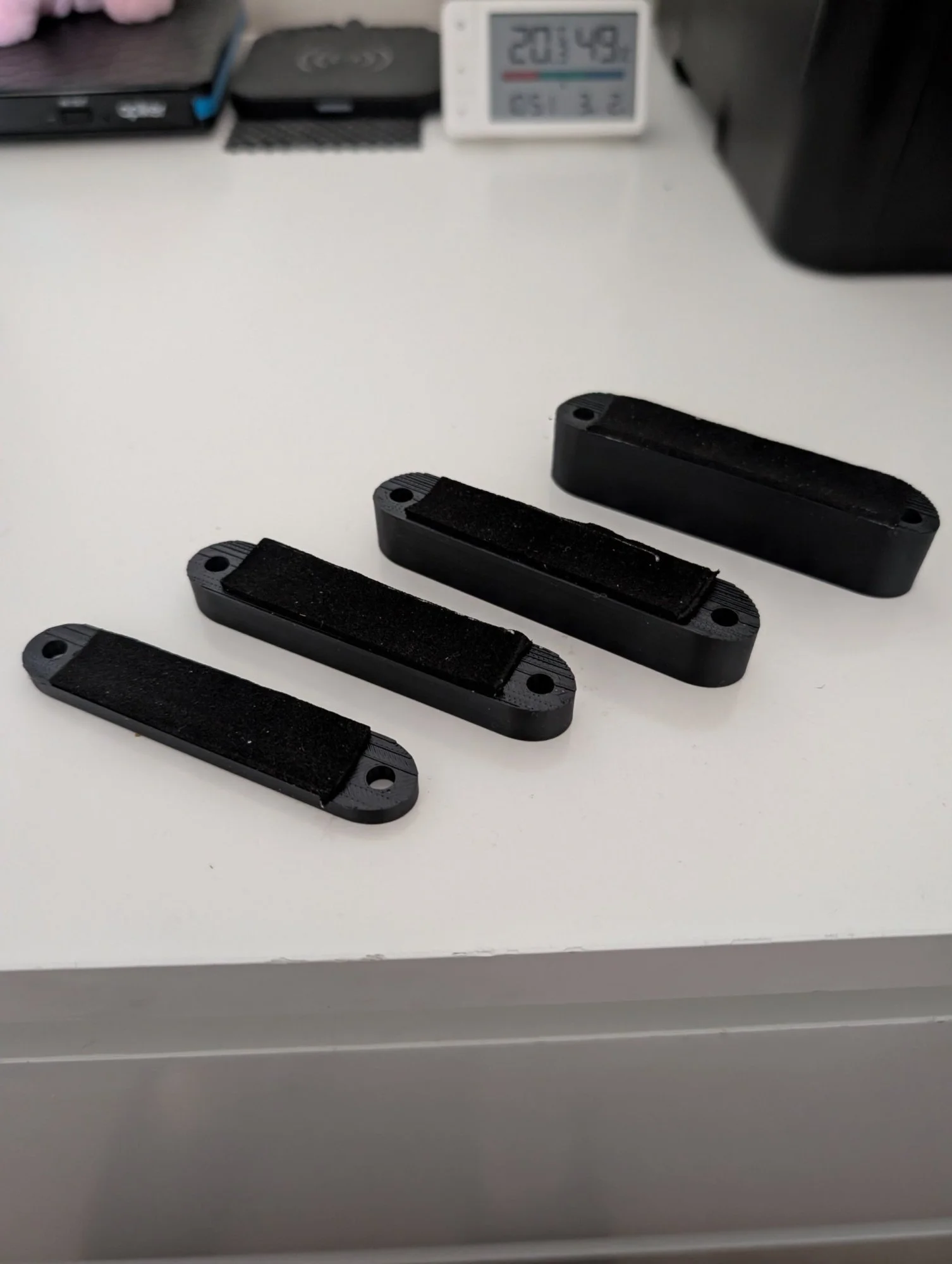

My lad was saying that the cheek piece on his AP900 was a little low so I came up with these 3D Printed riser blocks, they are in 5mm 10mm 15mm 20mm heights, they have a slight curve to one face to fit the stock and I have put a piece of neoprene on this surface to prevent any marking of the stock . The only thing he had to source were some longer M4 countersunk screws. It is possible to stack these for a higher cheek piece if you want to. I have the file if anyone wants it I'm not sure if I'm allowed to post it here.


Attachments

  • risers.jpg
    842.9 KB · Views: 9
